SHACMAN Delong F3000 8×4 Concrete Mixer Truck | Heavy Duty Cement Mixer Truck
Product Overview

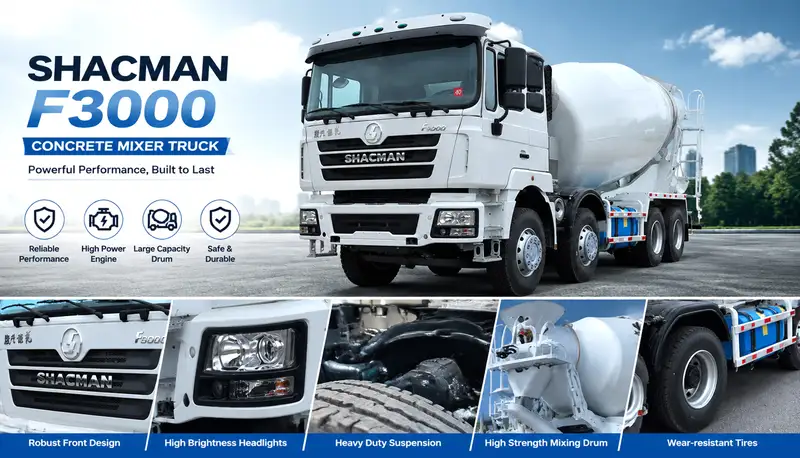

SHACMAN Delong F3000 8×4 Concrete Mixer Truck
The SHACMAN Delong F3000 8×4 Concrete Mixer Truck is a heavy-duty concrete transportation vehicle designed for construction projects, infrastructure development, commercial buildings and ready-mixed concrete applications.
Built on the proven SHACMAN F3000 8×4 chassis, the truck combines a powerful diesel engine, heavy-duty drivetrain and professional concrete mixing system to provide stable performance during concrete transportation.
The mixer drum continuously rotates during transportation to help maintain the uniformity and workability of the concrete before it reaches the construction site.
With its four-axle chassis, large mixer capacity and reliable hydraulic mixing system, this truck is suitable for customers who need efficient concrete transportation between batching plants and construction sites.
Main Specifications
| Parameter | Specification |
| Brand | SHACMAN |
| Model | Delong F3000 8×4 Concrete Mixer Truck |
| Drive Type | 8×4 |
| Cab | F3000 Cab |
| Steering | LHD / RHD Optional |
| Engine Brand | Weichai |
| Engine Power | 380 HP / 400 HP / 430 HP Optional |
| Emission Standard | Euro II / Euro III / Euro V Optional |
| Transmission | FAST Manual Transmission |
| Gearbox | 10-Speed / 12-Speed Optional |
| Front Axle | Heavy-Duty Front Axles |
| Rear Axle | Heavy-Duty Rear Axles |
| Mixer Drum Capacity | 10-12 m³ Optional |
| Drum Material | High-Strength Wear-Resistant Steel |
| Mixing Method | Hydraulic Drive |
| Water Tank | Auxiliary Water Tank |
| Fuel Tank | Approx. 400 L |
| Tire Size | 12.00R20 |
| Drive System | 8×4 |
| Application | Ready-Mixed Concrete Transportation |
The final configuration can be adjusted according to customer requirements and destination-market regulations.
Product Details
1. Large-Capacity Mixer Drum
The concrete mixer drum is designed to provide sufficient capacity for continuous concrete transportation.
Typical drum capacities can be configured around 10-12 m³, depending on the chassis, local regulations and customer requirements.
The drum uses wear-resistant steel to improve durability when handling concrete mixtures over long periods.
2. Efficient Mixing System
The hydraulic drive system provides stable power for drum rotation.
During transportation, the drum can maintain continuous mixing to help prevent:
- Concrete segregation
- Excessive material settling
- Premature hardening
The mixing system is designed for stable operation and convenient control.
3. Optimized Drum Structure
The internal spiral blades guide concrete materials during rotation.
The drum design helps achieve:
Loading → Continuous Mixing → Transportation → Controlled Discharge
This allows concrete to remain workable while being transported from the batching plant to the construction site.
Concrete Mixing & Discharge Process
The SHACMAN F3000 mixer truck is designed around a simple and efficient working process:
Step 1 — Concrete Loading
Fresh concrete is loaded into the mixer drum at the batching plant.
Step 2 — Continuous Mixing
The drum rotates during transportation to maintain the consistency of the concrete mixture.
Step 3 — Site Transportation
The 8×4 chassis provides stable transportation between the concrete plant and construction site.
Step 4 — Concrete Discharge
The drum rotation changes direction to push the concrete toward the discharge outlet.
Step 5 — Cleaning
The water system can be used for basic cleaning and maintenance after operation.
Customization Options
We can provide different configurations according to customer requirements.
Chassis
- 6×4
- 8×4
- Different wheelbases
Engine
- 380 HP
- 400 HP
- 430 HP
- Other configurations available
Mixer Drum
- 8 m³
- 10 m³
- 12 m³
- Other capacities according to chassis and local regulations
Exterior
- Red
- White
- Green
- Yellow
- Customized colors
Steering
- LHD
- RHD
FAQ
Q1: What is the mixer capacity of the SHACMAN F3000 8×4?
The mixer drum can commonly be configured around 10-12 m³, while the final capacity depends on chassis configuration and local regulations.
Q2: What is the drive type?
This model uses an 8×4 heavy-duty chassis.
Q3: Can the mixer drum capacity be customized?
Yes. Different drum capacities can be supplied according to the customer's requirements and chassis configuration.
Q4: Can I choose the vehicle color?
Yes. Red, yellow, white, green and other customized colors are available.
Q5: Is right-hand drive available?
Yes. RHD configurations can be supplied for markets with right-hand traffic regulations.
Q6: What is this concrete mixer truck used for?
It is mainly used for transporting ready-mixed concrete from batching plants to construction sites, including building, highway, bridge and infrastructure projects.
