SHACMAN Delong M3000S 8×4 Concrete Mixer Truck | Heavy Duty Cement Mixer
Product Overview

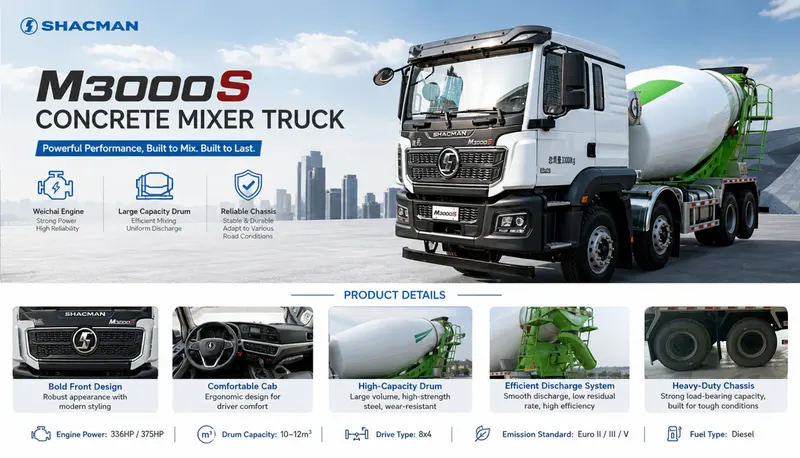

SHACMAN Delong M3000S 8×4 Concrete Mixer Truck
The SHACMAN Delong M3000S 8×4 Concrete Mixer Truck is a heavy-duty concrete transportation vehicle designed for large construction projects, infrastructure development and ready-mix concrete delivery.
The vehicle combines the Delong M3000S 8×4 heavy-duty chassis with a dedicated concrete mixing system. Its four-axle configuration provides a stable platform for a large-capacity mixer drum, making it suitable for projects that require frequent transportation of ready-mixed concrete.
During transportation, the mixer drum continuously rotates to keep the concrete moving and help maintain a consistent mixture. At the construction site, the hydraulic drive system allows the drum to rotate in the required direction for efficient concrete discharge.
The M3000S 8×4 is particularly suitable for customers who need larger concrete transportation capacity and stable performance for continuous construction operations.
Main Product Specifications
| Parameter | Specification |
| Brand | SHACMAN |
| Model | Delong M3000S 8×4 |
| Vehicle Type | Concrete Mixer Truck |
| Drive Configuration | 8×4 |
| Cab | Delong M3000S |
| Engine | Diesel Engine |
| Engine Power | Approx. 340-430 HP |
| Transmission | Manual |
| Front Axles | 2 |
| Rear Axles | 2 |
| Driven Axles | 2 |
| Mixer Drum Capacity | Approx. 12-16 m³ |
| Drum Material | Wear-Resistant Steel |
| Mixing System | Hydraulic Drive |
| Discharge System | Rear Discharge Chute |
| Water Tank | Equipped / Optional |
| Tires | 12.00R20 / 12R22.5 Optional |
| Color | Customized |
| Application | Construction / Infrastructure |
8×4 Heavy-Duty Chassis
The 8×4 chassis is one of the key advantages of this mixer truck.
The four-axle structure provides a strong and stable platform for the mixer body and allows the vehicle to accommodate a larger concrete drum than many smaller chassis configurations.
The 8×4 configuration is suitable for:
- Large construction projects
- Highway construction
- Bridge projects
- Commercial building projects
- Infrastructure development
- Ready-mix concrete transportation
Two rear axles are driven, providing reliable traction when the mixer truck is operating with a loaded drum.
Large-Capacity Concrete Mixer Drum
The M3000S 8×4 can be equipped with a large-capacity mixer drum according to customer requirements.
Common configurations include approximately 12 m³, 14 m³ and 16 m³.
The larger drum capacity allows more concrete to be transported during each trip, which can help improve transportation efficiency on large construction sites.
The final capacity should be selected according to:
Chassis Capacity + Local Regulations + Concrete Density + Project Requirements
Continuous Mixing System
The mixer drum rotates continuously during transportation.
This movement helps keep the concrete mixture evenly distributed and reduces the possibility of material segregation before the truck reaches the construction site.
The operating process is:
Concrete Loading → Drum Mixing → Road Transportation → Site Positioning → Concrete Discharge
The hydraulic system controls drum rotation and provides stable operation during loading, transportation and unloading.
Wear-Resistant Drum
The mixer drum operates continuously and comes into direct contact with concrete, making wear resistance an important consideration.
The drum can be manufactured using wear-resistant steel, with reinforced mixing blades designed for repeated concrete mixing operations.
This construction helps the mixer body withstand the demands of frequent loading, transportation and discharge cycles.
Concrete Discharge System
The rear discharge system allows the concrete to be delivered directly to the required construction location.
The discharge assembly can include:
- Main discharge chute
- Extension chute
- Rotating chute
- Chute locking mechanism
- Cleaning water system
The chute configuration can be customized according to the customer's construction requirements.
Application Fields
Highway Construction
Suitable for transporting concrete for road bases, bridges, tunnels and related infrastructure.
Bridge Construction
The large-capacity mixer can support continuous concrete supply during bridge construction.
Commercial Buildings
Suitable for residential, commercial and industrial building projects.
Infrastructure Projects
The truck can support:
- Airports
- Industrial parks
- Urban infrastructure
- Large public facilities
- Highway projects
Ready-Mix Concrete Transportation
Ideal for transporting concrete from batching plants to construction sites.
Why Choose the M3000S 8×4 Mixer Truck?
For large construction projects, concrete transportation efficiency depends on both vehicle capacity and reliability.
The SHACMAN Delong M3000S 8×4 combines a four-axle heavy-duty chassis with a large mixer drum, providing a practical solution for customers who need to transport larger quantities of concrete per trip.
Its overall configuration brings together:
8×4 Chassis + Large Mixer Drum + Hydraulic Drive + Wear-Resistant Structure + Reliable SHACMAN Platform
This makes it suitable for contractors, ready-mix concrete suppliers and construction companies.
FAQ
Q1: What is the mixer capacity?
Depending on the selected configuration, the mixer drum can typically be supplied in approximately 12-16 m³ capacities.
Q2: Why choose an 8×4 mixer truck?
The four-axle chassis provides a stable platform and is suitable for larger-capacity mixer drums and high-volume concrete transportation.
Q3: Can the mixer drum capacity be customized?
Yes. The capacity can be selected according to the chassis, local regulations and project requirements.
Q4: Can the truck color be customized?
Yes. The exterior color can be customized according to customer requirements.
