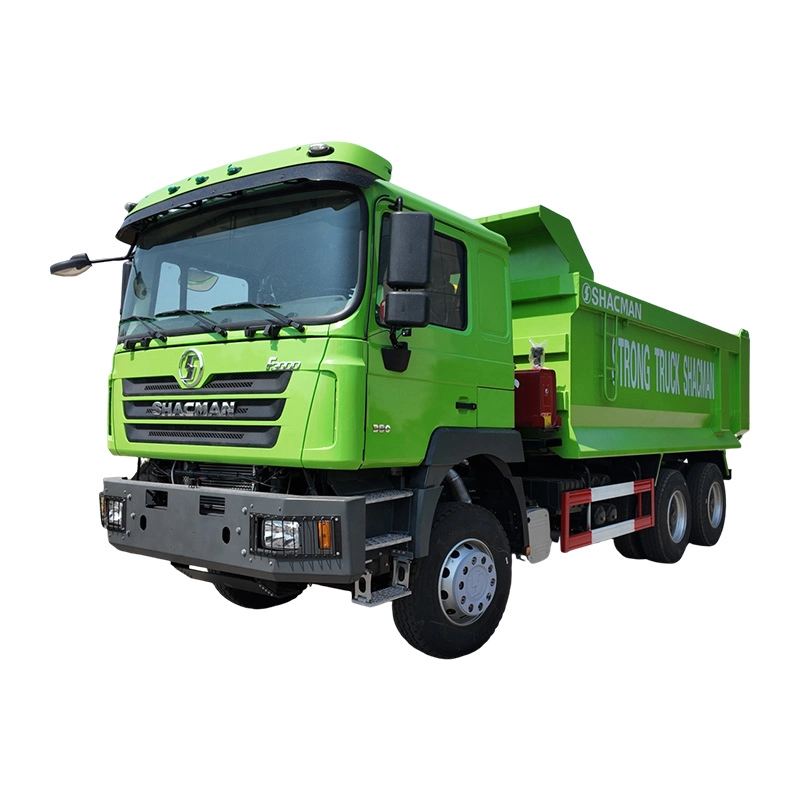

SHACMAN Delong F3000 6×4 U Type Dump Truck 380HP Heavy Duty Tipper Truck
Product Overview
The SHACMAN Delong F3000 6×4 U Type Dump Truck is a heavy-duty tipper truck specially designed for mining transportation, construction projects, quarry operations, and bulk material hauling.
Based on SHACMAN's mature heavy-duty truck platform, the F3000 dump truck combines a powerful engine, reinforced chassis, durable axle system, and high-strength U-shaped cargo body to deliver excellent loading performance and reliability under harsh working conditions.
The U-type dump body design improves unloading efficiency and reduces material accumulation, making it an ideal solution for transporting sand, gravel, ore, coal, and other construction materials.
Product Specifications
| Item | Specification |
| Brand | SHACMAN |
| Model | Delong F3000 Dump Truck |
| Drive Type | 6×4 |
| Cabin | F3000 Sleeper Cab |
| Engine Brand | WEICHAI |
| Engine Model | WP10.380E22 |
| Horsepower | 380HP |
| Emission Standard | Euro II / Euro III Optional |
| Transmission | FAST 10JSD140 Manual Transmission |
| Gearbox | 10 Forward + 2 Reverse |
| Front Axle | MAN 7.5 Ton / 9.5 Ton |
| Rear Axle | MAN 16 Ton Heavy Duty Axle |
| Rear Axle Ratio | 5.262 |
| Wheelbase | 3775+1400mm |
| Fuel Tank | 400L Aluminum Alloy Tank |
| Tire Size | 12.00R20 |
| Maximum Speed | 85 km/h |
| Gross Vehicle Weight | 25 Tons |
| Dump Body Type | U-Type Dump Body |
| Dump Body Size | 5600×2300×1500mm |
| Body Material | High Strength Steel / NM450 |
| Bottom Thickness | 8mm |
| Side Thickness | 6mm |
Core Advantages
1.Wear-Resistant U-Type Dump Body
The U-shaped cargo box is one of the key advantages of this model.
Benefits:
- Better material flow during unloading
- Less material sticking inside the box
- Higher loading efficiency
- Longer service life
The dump body can be equipped with high-strength steel or NM450 wear-resistant steel, suitable for transporting stones, minerals, sand, and other abrasive materials.
2. Strong Loading Capacity
Designed for heavy-duty transportation, the F3000 6×4 dump truck provides excellent carrying performance for construction and mining industries.
- 25-ton gross vehicle weight
- Heavy-duty rear axle system
- Reinforced frame structure
3. Cost-Effective Operation
Compared with many international brands, SHACMAN provides:
- Competitive purchase cost
- Easy spare parts supply
- Simple maintenance
- Long service life
4. Custom Configuration Available
We support customization according to different markets:
- Left-hand drive / Right-hand drive
- Different emission standards
- Engine options
- Tire options
- Cargo body size
- Customer color requirements
Export Case
SHACMAN F3000 Dump Trucks Delivered to Africa Market
With excellent durability and strong performance, SHACMAN F3000 dump trucks have been exported to many overseas markets, including Africa, Southeast Asia, Middle East, and South America.
For African customers, the F3000 series is especially suitable because of:
- Strong adaptability to rough roads
- High load-bearing capacity
- Easy maintenance
- Reliable spare parts support
Our company provides complete export solutions, including vehicle inspection, logistics arrangement, customs support, and after-sales service.
Why Choose Us
Shandong Global Diamond Automobile Technology Co., Ltd.
Shandong Global Diamond Automobile Technology Co., Ltd. is a professional exporter specializing in commercial vehicles, trailers, and engineering equipment.
We integrate:
- Vehicle sourcing
- Quality inspection
- International sales
- Export logistics
- Customer service
Our advantages:
Professional Export Experience
We have rich experience in supplying vehicles to overseas markets, especially Africa, Middle East, Southeast Asia, and South America.
Strict Quality Inspection
Every vehicle is inspected before shipment to ensure:
- Engine performance
- Chassis condition
- Hydraulic system operation
- Vehicle appearance
FAQ
Q1: What is the horsepower of SHACMAN F3000 dump truck?
The SHACMAN F3000 6×4 dump truck is commonly equipped with a 380HP Weichai engine, providing strong power for heavy-load transportation.
Q2: What is the dump body capacity?
The standard U-type dump body size is around 5600×2300×1500mm, with customization available according to customer requirements.
Q3: Can you customize the truck?
Yes. We can customize:
- Driving position
- Engine power
- Emission standard
- Tire specification
- Dump body size
- Color
