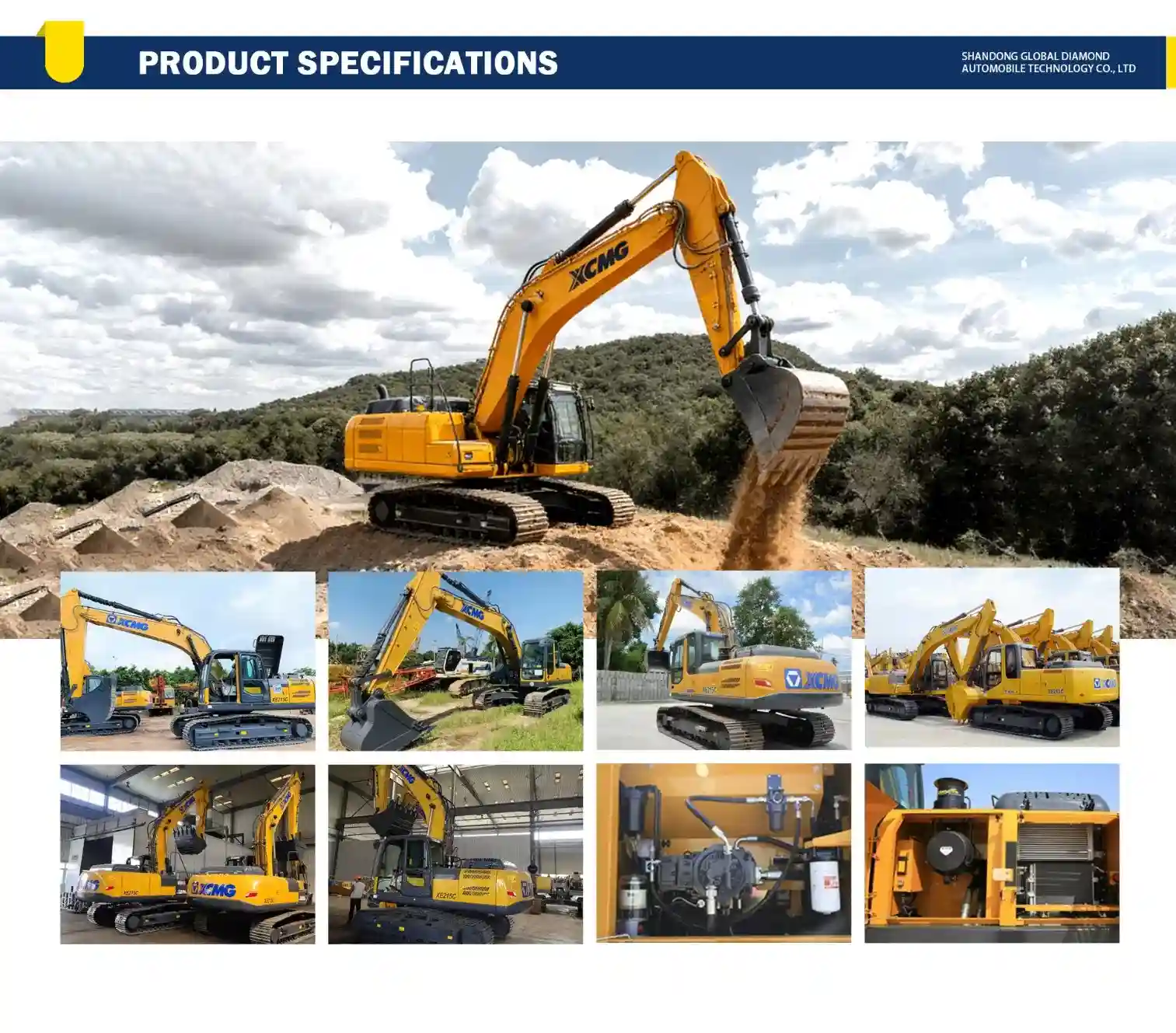

Heavy Excavator for Mining and Large-Scale Construction
The heavy duty excavator is built for demanding mining and large-scale construction projects. Featuring powerful output, reinforced structures, and high operational stability, it ensures maximum productivity in extreme working conditions.
Heavy Excavator Detailed Description
The Heavy Excavator is designed for high-load, high-intensity operations such as mining, large earthmoving projects, and major infrastructure construction. With a robust undercarriage, heavy-duty boom system, and powerful hydraulic output, it delivers exceptional performance in the toughest environments.
This heavy machinery manufacturing is optimized for continuous operation under heavy loads. The advanced hydraulic and cooling systems ensure consistent performance, while the reinforced structural design enhances durability and reduces downtime.
The spacious operator cabin is designed for safety and comfort, offering excellent visibility, intuitive controls, and reduced vibration, enabling operators to maintain efficiency during long shifts.Specification
| Operating Weight | 31,000 kg |
| Rated Bucket Capacity | 1.6 m3 (Range: 1.4 - 1.8 m3) |
| Engine Model | QSM11 (Typical) |
| Rated Power / Speed | 180 kW (245 HP) @ 2000 rpm |
| Emission Standard | China Non-Road Stage IV / EU Stage V |
| Main Pump Type | Variable Displacement Dual Pumps |
| Main Relief Valve Pressure | 34.3 MPa |
| Pilot Pressure | 3.9 MPa |
| Control System | Negative Flow Control (or advanced Positive Flow Control) |
| Track Shoe Width | 600 mm (Standard) |
| No. of Rollers / Carrier Rollers (per side) | ‘9/2 |
| Ground Pressure | Approx. 68 kPa |
| Travel Speed (High/Low) | 5.5 / 3.5 km/h |
| Gradeability | 70% |
| Max. Digging Depth | 7,050 mm |
| Max. Vertical Digging Depth | 6,200 mm |
| Max. Digging Height | 10,300 mm |
| Max. Dumping Height | 7,150 mm |
| Max. Digging Radius | 10,000 mm |
| Boom Length | 6,050 mm |
| Stick (Arm) Length | 2,950 mm |
| Swing Speed | 12 rpm |
Heavy Excavator Applications
| Sector | Primary Task | Key Operational Benefit |
| Mining & Quarry | Overburden removal and ore loading | Reliability: Built for high-abrasion environments. |
| Infrastructure | Large-scale dam and highway earthmoving | Efficiency: Moves massive volumes of soil per hour. |
| Heavy Demolition | Breaking reinforced concrete and steel | Power: High breakout force for structural removal. |
| Bulk Handling | Loading high-tonnage dump trucks | Speed: Rapid swing speeds to optimize logistics. |
Why Choose Our Heavy Excavator Solutions?
As a specialist in Construction heavy machine, we focus on minimizing your total cost of ownership:
-
Mining-Grade Durability: Every unit undergoes rigorous vibration and stress testing to ensure it meets international durability standards.
-
Low Maintenance Downtime: Centralized lubrication points and easy-access service panels mean your machine spends more time in the pit and less time in the shop.
-
Proven Global Performance: Our excavators are currently operational in some of the world's harshest mining climates, from high-altitude sites to tropical quarries.
Comprehensive Manufacturer Services
-
Custom Mining Configurations: We offer specialized "Rock Packages," including reinforced buckets, armored cabs, and extreme-duty track guards.
-
Technical Engineering Support: Our team provides project-based application guidance to ensure you select the right tonnage and attachment for your specific geological conditions.
-
Export & Logistics Excellence: Complete management of international shipping, including heavy-lift logistics and all necessary export compliance documentation.
-
Global Parts Infrastructure: Long-term supply of genuine hydraulic seals, filters, and wear parts (teeth/edges) to keep your operation running without interruption.
