Heavy Duty Side Wall Cargo Trailer for General Freight Transport
The Side Wall Trailer is a multi-purpose fence cargo semi trailer designed for safe and stable transportation of general goods. Its solid side walls provide enhanced cargo protection, making it ideal for long-distance freight and high-volume logistics operations.
Heavy Duty Side Wall Cargo Trailer Detailed Description
The Side Wall Cargo Trailer combines the flexibility of open trailers with the added safety of fixed side walls. It is specifically designed for transporting general cargo, bagged goods, construction materials, and industrial products that require extra containment during transit.
Compared with fence trailers, side wall trailers offer better cargo retention and protection, reducing the risk of load shifting or spillage. The reinforced side panels and floor structure ensure excellent rigidity even under full load conditions.
Our side wall trailers are manufactured using precision cutting, automatic welding, and strict quality control processes, ensuring consistent performance, structural integrity, and long service life in demanding transport environments.
Packaging & Delivery
3 Axles Side Wall Semi Trailer Description
We are manufacturer.
The trailer model we show is Quest standard product; meanwhile, all our trailers can be customized according to your unique request.
Side wall cargo semi trailer, solution for container hauling and bulk cargo transporting.
Characteristics :
- Variety of Sizes - 20ft, 40ft, 45ft, 48ft, 53ft, etc, side wall height optional.
- Light Weight - Light tare weight with strong loading capacity.
- Perfect Welding - Automatic welding of main beam guarantee stability and durability.
- Modern Transportation Accessories - spare tire carriers, water tank, fuel tank, etc.
Less Maintenance, Better Performance.
Heavy Duty Side Wall Cargo Trailer Parameters
| SIDE WALL SEMI TRAILER | |||
| Overall Length | 12500 mm | ||
| Overall Wide | 2500 mm | ||
| Overall Height | 1550+600 mm | ||
| Tare Weight | About 7000KGS | ||
| Loading capacity | 40-50 tons | ||
| Side panel : | |||
| Side panel height | standard 600mm/800mm-1800mm optional | No. of Side panel | Each side 5-6 pieces |
| Side panel design | Corrugated board/Lateral and vertical direction | Front guard | 1200mm standard |
| Chassis | |||
| Axles | 2 or 3 axles, 13T/16T,BPW/FUWA/HUAJING brand | ||
| Main Beam | Q345carbon steel ,Welding Design | ||
| Support Legs | JOST(D200T) or China brand 28T | ||
| Suspension | Mechanical suspension/Germany or America type/Air Suspension | ||
| Leaf Spring | 90(W)mm*13(Thickness)*10 Layer or other | ||
| Braking System | WABCO RE6 relay valve; T30/30+T30 Spring brake chamber,45L air chamber | ||
| Tire | 12.00R22.5/315 80R22.5/11.00R20/12.00R20 Brand can be optiona | ||
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand | ||
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin | ||
| ABS | Optional | ||
| Painting | Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint | ||
| Accessories | One tool box | ||
| Shipping Terms | By Bulk Cargo,RORO or 40HQ or 40ft FR container | ||

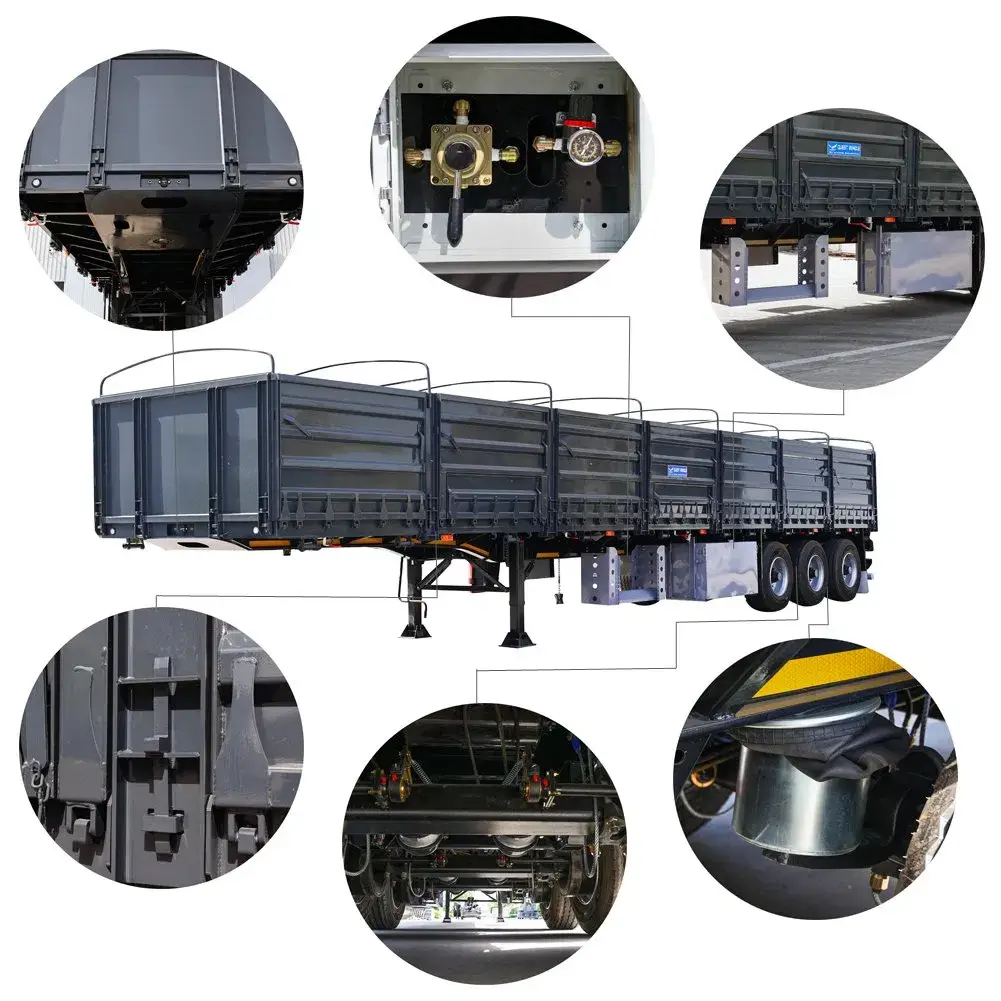

Heavy Duty Side Wall Cargo Trailer Detailed Photos
Heavy Duty Side Wall Cargo Trailer Key Advantages
- Enhanced Cargo Safety
Solid side walls prevent cargo falling or shifting
Ideal for long-haul transportation
- Heavy-Duty Structural Design
Reinforced chassis and floor plate
High load-bearing capability
- Wide Cargo Compatibility
Suitable for packaged goods, building materials, machinery parts, and bulk freight
- Easy Maintenance
Simple structure with low maintenance requirements
Durable components reduce downtime
Heavy Duty Side Wall Cargo Trailer Application Scenarios
- General freight transportation
- Construction site material hauling
- Industrial goods logistics
- Warehouse-to-warehouse transport
- Long-distance road freight
Optional Configurations
- Side wall height customization
- Detachable or foldable side panels
- Different suspension systems
- Brake system options
- Tire and axle brand selection
- Custom color and branding
Why Choose Us
- Proven Quality Control
Each trailer undergoes strict inspection before delivery.
- Market-Oriented Design
Designed to meet international transport standards and road conditions.
- Customization Capability
From load capacity to structural details, we tailor trailers to your needs.
- Long-Term Partnership
We focus on building stable, long-term cooperation with global clients.
Semi Trailer Manufacturer Services
- Pre-sales technical consultation
- Custom design & configuration support
- Quality testing & inspection reports
- Export documentation assistance
- After-sales technical guidance
