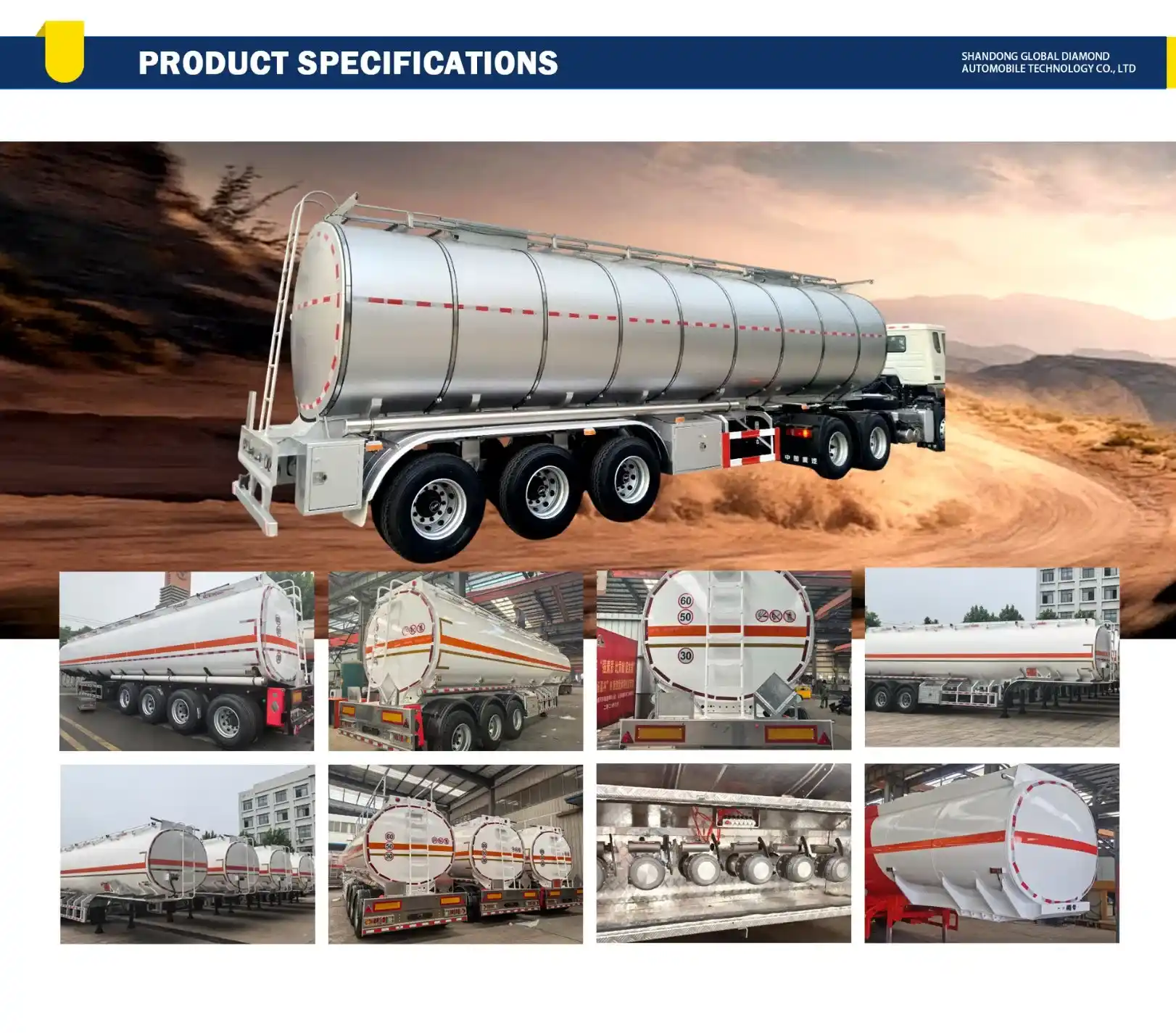

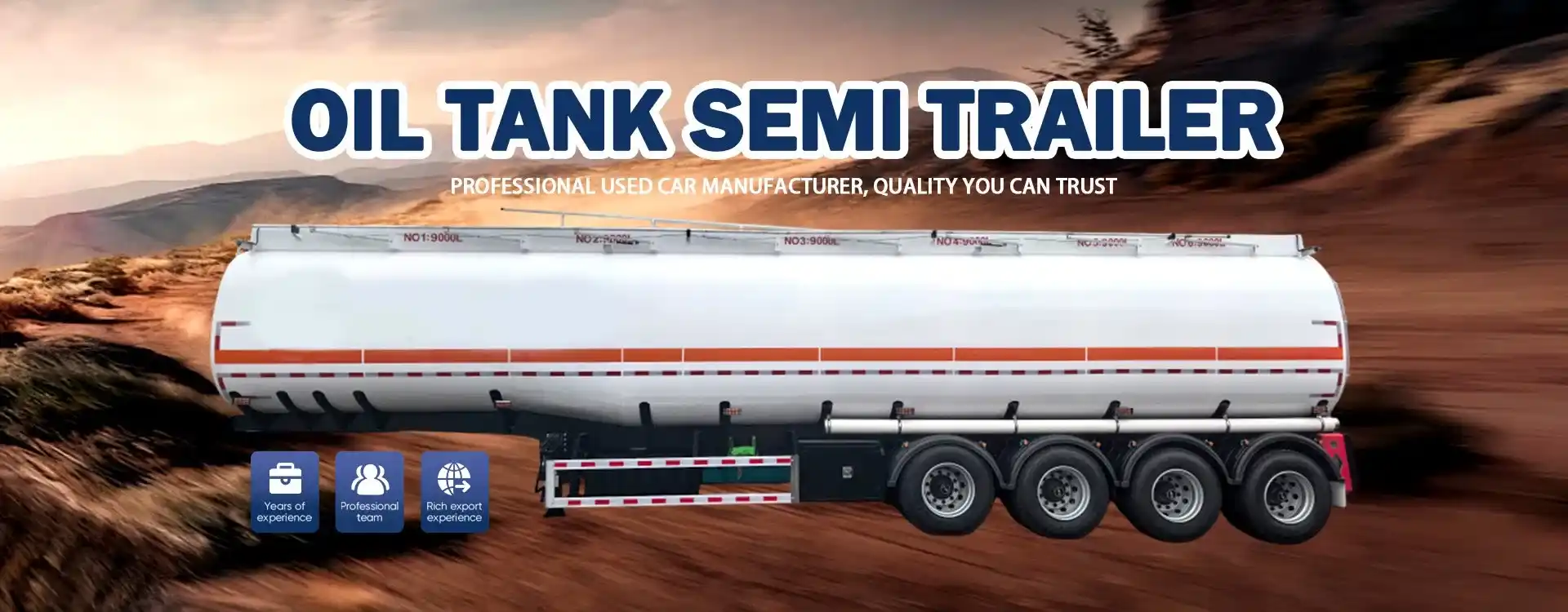

Carbon Steel Fuel Tank Trailer for Petroleum Transport
Durable carbon steel fuel tank trailer designed for safe and cost-effective fuel transportation.
Carbon Steel Fuel Tank Trailer Detailed Description
The Carbon Steel Fuel Tank Trailer is a practical and economical solution for transporting petroleum products such as diesel, gasoline, and kerosene. Built with high-strength carbon steel, this trailer offers excellent structural durability and impact resistance, making it suitable for long-term heavy-duty operations.
Its reinforced tank body and precision welding ensure reliable performance under demanding road and climate conditions. This model is widely used in fuel distribution networks and is an ideal choice for customers seeking strong performance with controlled investment cost.
Carbon Steel Fuel Tank Trailer Key Advantages
- High-strength carbon steel structure
- Excellent impact and fatigue resistance
- Cost-effective for large-scale fuel transport
- Easy maintenance and long service life
Carbon Steel Fuel Tank Trailer Specification
| Size | 12000mm*2500mm*3800mm |
| Volume | 30-60m³ |
| Tank body | Steel |
| End plate | Steel |
| Axle | 3 axle FUWA brand (Optional) |
| Suspension | Mechanical suspension (Optional) |
| Leaf spring | 13mm×90mm×10PCs (Optional) |
| Manhole cover | 500mm manhole cover with breath valve .2 sets (Optional) |
| Tire | 12R22.5 12pcs (Optional) |
| Wheel rim | 9.0-22.5 12pcs (Optional) |
| Discharge valve | 4"disc valve |
| Discharge pipe | 4"seamless steel tube |
| Bottom valve | 1 set |
| Kingpin | 2"/3.5" bolt-in /welded king pin |
| Landing gear | FUWA brand Two-speed, manual operating ,heavy duty landing gear 28T(Optional) |
| Compartment | Single or Multi (Optional) |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| EBS | WABCO EBS (Optional) |
| Light | 24V, LED lamp |
| Painting | primer + top coat, polyurethane paint |
| Accessories | One standard tool box,one spare tire carrier,one crank,one shaft head wrench,four side light,two rear light |
| Tread | 1820mm |
| Grade | Heavy Duty |
| Shape | Tank |
| Axle Number | 3 |
| Tire Number | 12 |
| Self-dumping | Not Self-dumping |
| ABS Anti-lock Braking System | No ABS Anti-lock Braking System |
| Material | Steel |
| Condition | New |
| Transport Package | Nude |
Carbon Steel Fuel Tank Trailer Typical Applications
- Diesel and gasoline transportation
- Regional fuel distribution
- Industrial fuel supply
- Logistics companies and fuel stations
Why Choose Shandong Global Diamond Automobile Technology Co., Ltd.
- Semi trailer manufacturer over 20 years of experience in tanker trailer manufacturing
- Professional design focused on fuel transport safety
- Strict quality control from material selection to final inspection
- Rich export experience serving international markets
Carbon Steel Fuel Tank Trailer Safety & Compliance
- High-standard welding and leak testing
- Pressure and sealing performance inspection
- Designed to meet international transport standards
- Optional safety valves and anti-overflow systems
Our Services
- Custom buy semi trailers capacity and compartment design
- Material selection based on fuel type and environment
- Export packaging and logistics support
- Technical guidance and after-sales service
Designed for Reliable Fuel Transport
Our fuel tank trailers are engineered to provide safe, efficient, and stable transportation of petroleum products under diverse operating conditions. Each trailer is designed with safety, durability, and efficiency in mind.
Carbon Steel Fuel Tank Trailer Customization Available
- Tank material and thickness
- Compartment quantity and volume
- Valve and pipeline configurations
- Suspension and axle options
