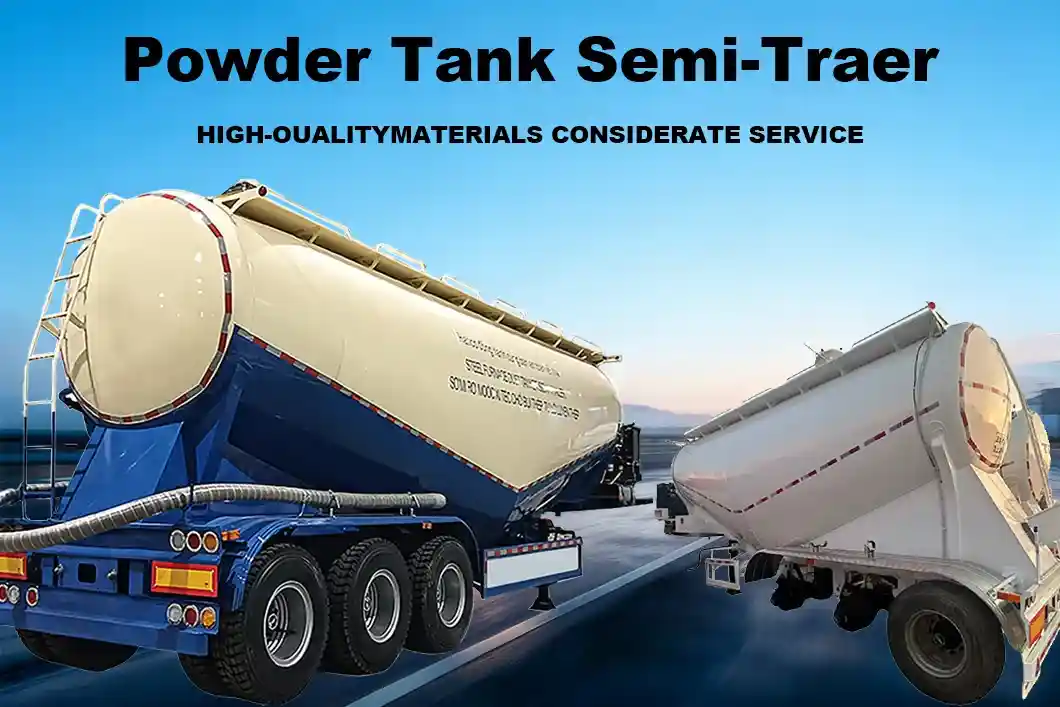

Bulk Cement Tank Trailer for Dry Powder Transportation
Bulk cement tank trailer designed for efficient, safe, and dust-free transportation of cement and other dry bulk powders.
Bulk Cement Tank Trailer Detailed Description
The cement tanker trailer is specially engineered for the transportation of cement, fly ash, lime powder, and other dry bulk materials. Its sealed tank structure and pneumatic discharge system ensure efficient unloading while preventing material contamination and dust pollution.
Built with a streamlined tank body and reinforced chassis, Buy semi trailers delivers excellent structural strength, stable driving performance, and long service life. The optimized internal layout improves material flow during unloading, reducing residue and maximizing operational efficiency.
This trailer is widely used in cement plants, construction sites, concrete batching plants, and bulk material logistics operations.
Key Advantages of Bulk Cement Tank Trailer
Efficient Pneumatic Discharge System
The advanced air compressor and fluidization system enable fast and complete unloading, minimizing material residue and reducing downtime.
Sealed Tank Design
Fully enclosed tank structure prevents moisture ingress and material loss, ensuring product quality during transportation.
High Structural Strength
Manufactured with high-quality steel and reinforced welding techniques, ensuring durability under frequent loading and unloading cycles.
Optimized Weight Distribution
Scientific tank shape and axle layout improve stability, fuel efficiency, and overall transport safety.
Bulk Cement Tank Trailer Specification
| BULK CEMENT SEMI TRAILER (SCD 60) | |
| Shape | Optional |
| (one silo with V type or two,three silos design) | |
| Dimension | 12000mm*2500mm*3990mm |
| (exact size depend on the final design) | |
| Compartment | Single |
| Total volume(m³) | 60m³(35cbm,40cbm,45cbm,50cbm,55cbm optional) |
| Tanker body material | 5mm/Q235 carbon steel |
| End plate | 6mm/Q235 carbon steel |
| Main beam | shape: V type main beam: Q345 middle plate: 6mm. Down plate:14mm |
| Manhole cover | Carbon steel 500mm |
| Discharging valve | 4 disc valve |
| Discharging pipe | 4 seamless steel tube |
| Engine | Diesel engine: weichai brand model: 4102 |
| Air compressor | 38 KW,0.2Mpa. 1000r/Min(12m3/minute) |
| Air-charging system | 2main hole.2check valve .1.5safe valve.0.4Mpa.gauge |
| Quadratic blow | 1diameter check valve |
| Outlet discharge pipe | 4 rubber hose 6m |
| Air-charging system | 2 main hole.2check valve .1.5safe valve.0.4Mpa.gauge |
| Axle | 13T brand * 3 pieces |
| Rim | 9.00-22.5 China Brand * 12 pieces+1 piece spare |
| Tire | 12R22.5Triangle brand * 12 pieces+1 piece spare tyre |
| Leaf spring | Leaf spring /10/10/10 |
| Pneumatic Braking System | WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber(TKL brand); |
| 40L air tanks. (Special for export market) | |
| Landing Gear / Support leg | JOST brand D200T |
| King Pin | JOST 2.00 inch bolt-in king pin |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box |
Bulk Cement Tank Trailer Typical Applications
- Cement transportation
- Fly ash and lime powder delivery
- Concrete batching plant supply
- Bulk building material logistics
- Infrastructure and construction projects
Bulk Cement Tank Trailer Structure & Performance Design
The tank body adopts a streamlined design that enhances pressure resistance and material flow. Internal fluidization devices ensure smooth discharge, while the reinforced frame supports long-term heavy-duty operation.
The trailer is designed to operate reliably under various climate and road conditions, making it suitable for both domestic and international markets.
Customization Options
- Tank volume and structure configuration
- Material selection for tank body
- Discharge system design
- Axle, suspension, and braking system
- Color, logo, and surface treatment
Why Choose Shandong Global Diamond Automobile Technology Co., Ltd.
- Extensive experience in bulk material transport equipment manufacturing
- Professional engineering team with strong customization capabilities
- Strict production and quality control standards
- Export-oriented manufacturing and packaging solutions
Quality Inspection & Safety Assurance
- Pressure and sealing performance tests
- Welding strength and structural integrity inspection
- Discharge efficiency testing
- Load and stability verification
After-Sales Support & Services
- Technical consultation for bulk material transportation solutions
- Customized design support based on operational needs
- Export documentation and logistics coordination
- Long-term spare parts and maintenance guidance
Bulk Cement Tank Trailer Environmental & Operational Benefits
- Dust-free unloading improves workplace safety
- Reduced material loss during transportation
- Improved operational efficiency for bulk material logistics
Reliable Solution for Bulk Powder Transport
The semi trailer for sale combines efficiency, durability, and safety, making it an ideal solution for professional bulk material transportation operations worldwide.
